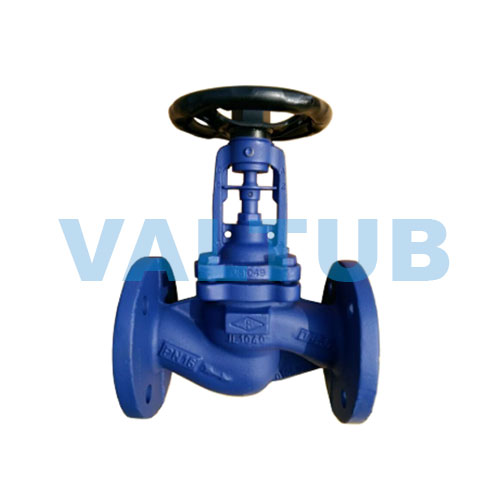

Bellow Globe Valve

Bellow Globe Valve

  • Model:-
  • Size:DN15-DN600
  • Pressure:PN10-PN420, Class 150- Class 2500
  • Body Materials:Cast Iron, Ductile Iron, WCB , Stainless Steel, Bronze/Brass
  • Applicable Medium:Water, oil, steam and other non-corrosive media.
Send us Email
Category:

Description

Product Introduction

Bellows globe valves, also known as bellows seal globe valves, are automatically welded to form a metal barrier between the fluid medium and the atmosphere to ensure stem leakage is zero. The bellows globe valve is constructed with bellows inside. The lower end of the stainless steel bellows is welded to the stem to prevent the stem from being corroded by process fluid. The other end is placed between the body and the bonnet to form a static seal. The double seal design also prevents leakage if the bellows fail the stem packing. The bellows are welded to the stem to maintain stable operating performance and prevent stem vibration due to plug vibration. Most suitable for steam, inflammable, explosive, heat conduction oil, high purity, toxic and other medium pipeline.

Product Features
  1. The bellows seal the globe valve, the key component of which is the metal bellows. The lower end and the valve stem assembly are automatically hobbing welded, and the upper end is automatically hobbing welding with the connecting plate to form a metal barrier between the fluid medium and the atmosphere to ensure zero leakage of the valve stem
  2. Valve plate adopts conical design, sealing surface and medium form a flow line, better sealing performance, longer service life
  3. Double seal design, avoid leakage, in line with international seal standards
  4. The valve cover is equipped with a grease joint, which can directly lubricate the valve stem, nut and shaft sleeve.
Technical Parameters
DN PN16 Weight(KG) PN25 Weight(KG) PN40 Weight(KG)
L D D1 N-φ H L D D1 N-φ H L D D1 N-φ H
15 130 95 65 4×14 190 4.5 130 95 65 4×14 190 4.5 130 95 65 4×14 190 5
20 150 105 75 4×14 190 5.0 150 105 75 4×14 190 5.0 150 105 75 4×14 190 5.5
25 160 115 85 4×14 195 5.8 160 115 85 4×14 195 5.8 160 115 85 4×14 195 6.5
32 180 140 100 4×18 210 7.5 180 140 100 4×18 210 7.5 180 140 100 4×18 210 8.5
40 200 150 110 4×18 220 10 200 150 110 4×18 220 10 200 150 110 4×18 220 11
50 230 165 125 4×18 230 13 230 165 125 4×18 230 13 230 165 125 4×18 230 14.5
65 290 185 145 8×18 255 18.5 290 185 145 8×18 255 18.5 290 185 145 8×18 255 20
80 310 200 160 8×18 270 23 310 200 160 8×18 270 23 310 200 160 8×18 270 24
100 350 220 180 8×18 360 38.5 350 235 190 8×22 360 40 350 235 190 8×22 360 42
125 400 250 210 8×18 380 53 400 270 220 8×26 380 55 400 270 220 8×26 380 58
150 480 285 240 8×22 415 81 480 300 250 8×26 415 88 480 300 250 8×26 415 95
200 600 340 295 12×22 530 144 600 360 310 12×26 530 155 600 375 320 12×30 530 165
250 730 405 355 12×26 665 230 730 425 370 12×30 665 250 730 450 385 12×33 665 295
300 850 460 410 12×26 720 420 850 485 430 16×30 720 460 850 515 450 16×33 720 510
350 980 520 470 16×26 1020 610 980 555 490 16×33 1020 680 980 580 510 16×36 1020 750
400 1100 580 525 16×30 1180 790 1100 670 550 16×36 1180 860 1100 660 585 16×39 1180 920
Technical Standard
  1. Design and manufacture according to DIN EN13709-2003.
  2. Face to face according to DIN EN588-1:1995.
  3. Flange drilling according to DIN EN1092-1:2002.
  4. Pressure test according to DIN EN12266:2003.
