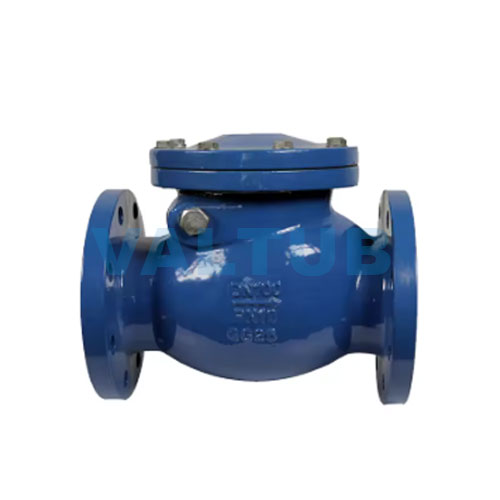

Cast iron swing check valve

Model:H44X
Size:DN50-DN400
Pressure:PN10,PN16
Body Materials:ductile iron
Applicable Medium:water etc.

Description

Product Introduction

A swing check valve is mounted with a disc that swings on a hinge or shaft. The disc swings off the seat to allow forward flow and when the flow is stopped, the disc swings back onto the seat to block reverse flow.
The weight of the disc and the return flow has an impact on the shut-off characteristics of the valve.

Product Features

Yifa cast iron swing check valves are designed with focus on easy access to maintenance. By unscrewing a few bolts the bonnet assembly including hinge and disc can be removed from the body, and maintenance can be performed.

Technical Parameters

DN	L	D		C		D1		n-φd
DN	L	PN10	PN16	PN10	PN16	PN10	PN16	PN10	PN16
DN50	200	165	165	125	125	102	102	4-φ19	4-φ19
DN65	240	185	185	145	145	122	122	4-φ19	4-φ19
DN80	260	200	200	160	160	138	138	8-φ19	8-φ19
DN100	300	220	220	180	180	158	158	8-φ19	8-φ19
DN125	350	250	250	210	210	184	184	8-φ19	8-φ19
DN150	400	285	285	240	240	212	212	8-φ23	8-φ23
DN200	500	340	340	295	295	268	268	8-φ23	12-φ23
DN250	600	405	405	350	355	320	320	12-φ23	12-φ28
DN300	700	460	460	400	410	370	370	12-φ23	16-φ28
DN350	800	520	520	460	470	429	429	16-φ23	16-φ28
DN400	900	580	580	515	525	480	480	16-φ28	16-φ30
