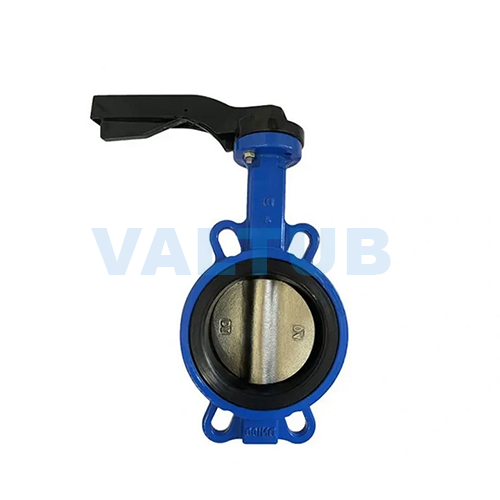

Ductile Iron Wafer Butterfly Valve

Ductile Iron Wafer Butterfly Valve

  • Size:DN50-DN300
  • Pressure:PN10, PN16, JIS5K,JIS10K, 150LB
  • Body Materials:Ductile iron
  • Disc Materials:DI, CF8,CF8M, Duplex SS,Bronze
  • Seat Materials:EPDM, NBR, PTFE, VITON
  • Applicable Medium:Water, oil etc.
Send us Email
Category:

Description

Product Introduction

Butterfly valve is a regulating valve with simple structure, which can be used for switch control of low-pressure pipeline medium. Butterfly valve refers to a valve in which the closing part is a disc, which rotates around the valve shaft to achieve opening and closing. Butterfly valves can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media. It mainly plays the role of cutting and throttling on the pipeline. It is widely used in many fields such as water treatment, petroleum, chemical industry, metallurgy, hydropower, etc.

Product Features
  1. New type ductile iron wafer butterfly valve has beautiful appearance and flexible and convenient operation;
  2. The structure is simple and compact, the sealing performance is good, and the maintenance is convenient;
  3. The disc and seat can be made of various materials to suit different working conditions;
  4. Various operation modes, manual, pneumatic, electric and chain drive are available.
Technical Parameters
Size L A B S H ISO5211 PN10 PN16 150LB JIS5K JIS10K
mm in Top flange φE φF n-φd1 φD1 N-φd φD1 N-φd φD1 N-φd φD1 N-φd φD1 N-φd
50 2 42 131.5 71.6 9 25 F05 65 50 4-8 125 4-19 125 4-19 120.5 4-18 105 4-15 120 4-19
65 2.5 44.7 138 82 9 25 F05 65 50 4-8 145 4-19 145 4-19 139.5 4-18 130 4-15 140 4-19
80 3 45.2 152.8 94.5 9 25 F05 65 50 4-8 160 8-19 160 8-19 152.5 4-18 145 4-19 150 8-19
100 4 52.1 167.5 107 11 28 F07 90 70 4-10 180 8-19 180 8-19 190.5 8-18 165 8-19 175 8-19
125 5 54.4 182.5 124.5 14 28 F07 90 70 4-10 210 8-19 210 8-19 216 8-22 200 8-19 210 8-23
150 6 55.8 195 136.5 14 28 F07 90 70 4-10 240 8-23 240 8-23 241.5 8-22 230 8-19 240 8-23
200 8 60.6 235 169 17 35 F10 125 102 4-12 295 8-23 295 12-23 298.5 8-22 280 8-23 290 12-23
250 10 65.6 267 207 22 40 F10 125 102 4-12 350 12-23 355 12-28 362 12-26 345 12-23 355 12-25
300 12 76.5 305 236 22 40 F10 125 102 4-12 400 12-23 410 12-28 432 12-26 390 12-23 400 16-25
Technical Standard
  1. Design and manufacture according to API609.
  2. Face to face according to API609.
  3. End flange according to ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16.
  4. Pressure test according to API598.
  5. Top flange: ISO5211.
